"IT ALL STARTED IN THE 2014"


| 3 YEARS OF DEVELOPMENT |

| 100+ 3D MODELS |

| 10+ PHYSICAL PROTOTYPES |





REVOLVE_wheel_design development_Andrea Mocellin

"REINVENT A TIMELESS PRODUCT WITH THE NEEDS OF TODAY

Andrea Mocellin created the original patented design for the folding wheel in 2015.

The patented mechanism is been reach after years of several hundred 3D models and dozens of physical prototypes in order to get the most efficient and accurate folding mechanism. The mission was to build the most compact wheel ever made. Timeless foldable products, robotics, universal joints and Omni wheel for their extremely modular and timeless functional design inspire its creation.

REVOLVE_wheel_design development_Andrea Mocellin
REVOLVE_wheel_design development_Andrea Mocellin
REVOLVE_wheel_design development_Andrea Mocellin

BRAINSTORMING AND FORM RESEARCH

Analyzing form and function to achieve the best compromise between mechanism and aesthetics.

HOBERMANN  PRINCIPLE STUDIES

A Hoberman sphere is an isokinetic structure capable of folding down to a fraction of its normal size by the scissor-like action of its joints.

RAPID PROTOTYPE TESTING

Developing the most effective mechanism trough the use of several rapid prototype models. Verifying the solidity and feasibility of Revolve.




PATENT PENDING



"A FOLDABLE WHEEL AND VEHICLES EQUIPPED WITH SUCH A WHEEL"

Foldable wheel including a double hub, a rim with rubberised sectors, and spokes pivotly connecting each hub  with the sectors of the rim. The sectors of the rim can be figured, starting from an extended condition  of forming the wheel in which the hubs  are mutually approached, in a collapsed condition  in which the hubs  are mutually spaced apart along the wheel axis. The spokes are pivoted to the hubs substantially on the wheel axis and in the collapsed condition the sectors of the rim extend longitudinally between the two hubs.


REVOLVE_wheel_patent pending_Andrea Mocellin



"SUITABLE FOR ALL TYPE OF TROLLEY OR CART WITH THE HELP OF SIDE WHEELS"



REVOLVE_wheel_patent pending_Andrea Mocellin



"VEHICLES EQUIPPED WITH SUCH A WHEEL"

REVOLVE_wheel_patent pending_Andrea Mocellin





"THE CHALLENGE TO CHANGE A TIMELESS PRODUCT"

 THE UNIVERSAL WHEEL, A TIMELESS PRODUCT NEVER CHANGE IN SHAPE AND FUNCTION







"THE NEED OF EXPLORATION"

THE WHEEL HAS BEEN THE BEST COMPANION IN TRANSPORTATION





"THE EVOLUTION OF THE WHEEL FOR TODAY'S DEMANDS"



FOLDABLE BICYCLE



Space efficiency is defined as the relationship between the income and benefit generated by a particular Floor space and its cost. The objective of optimum space efficiency is to achieve the maximum of benefit with the minimum of area.

WHEEL DESIGN



In the past years the wheel is been improve with personalization and engine to improve the way of moving of global travelers.

LAND DRONE



An unmanned ground vehicle (UGV) is a vehicle that operates while in contact with the ground and without an onboard human presence. UGVs can be used for many applications where it may be inconvenient, dangerous, or impossible to have a human operator present.

MORPH WHEEL

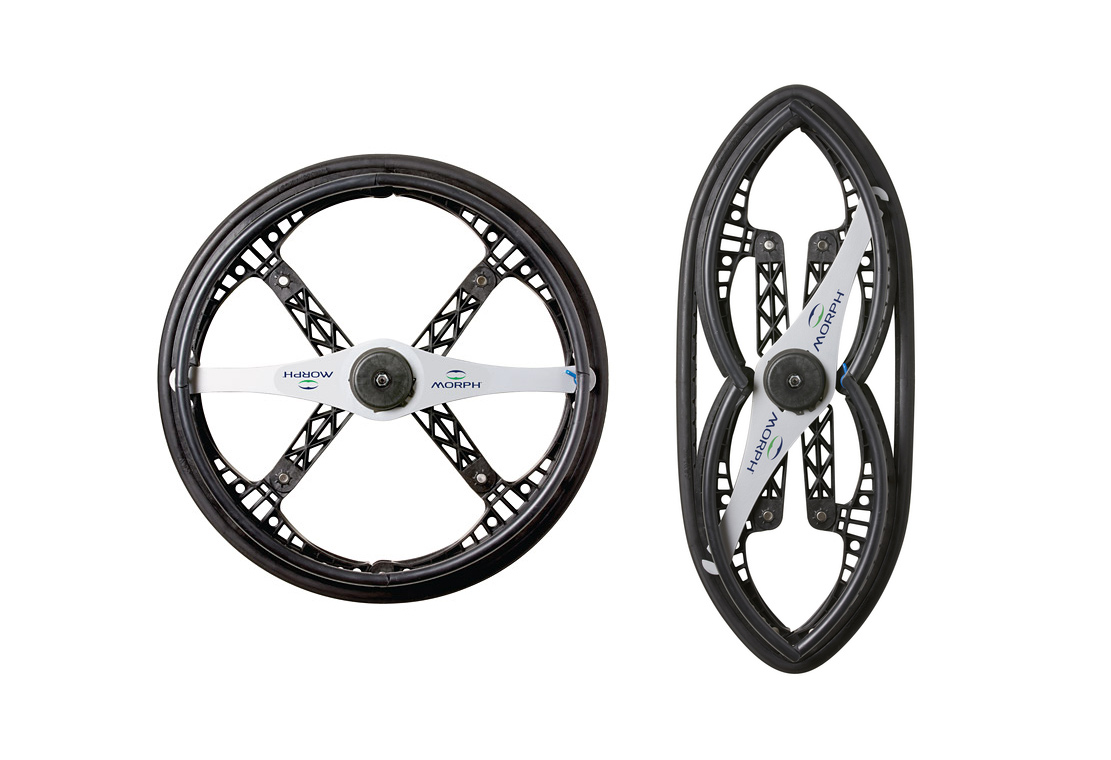

Initially designed for bicycles, the Morph folding wheel by Vitamins Design measures 60 centimetres across and has a volume of 22 litres. When folded down, the 3.4 kilogram wheel measures 80 centimetres by 32 centimetres and has a volume of only 12 litres.




WHEEL TIPOLOGY.jpg


OMNIDIRECTIONAL WHEEL

Omnidirectional wheels are poly wheels, similar to Mecanum wheels, are wheels with small discs around the circumference which are perpendicular to the turning direction. The effect is that the wheel can be driven with full force, but will also slide laterally with great ease.



AMPHIBIOUS SPHERE

Guardbot was initially conceived for a planetary mission on Mars, and can operate in many demanding situations, as it can travel on paved road, off-road, sand, snow, sloped surfaces, and in water, where it can navigate upstream. Guardbot is designed for mission operations in broadcasting, surveillance, security, and detection.

AIRLESS TYRE



Non-pneumatic tires (NPT), or Airless tires, are tires hat are not supported by air pressure. They are used on some small vehicles such as riding lawn mowers and motorized golf carts. Tires composed of closed-cell polyurethane foam are also made for bicycles and wheelchairs.

LUNAR ROVER WHEEL

The tire is made of a woven mesh of zinc-coated piano wire to which titanium treads were riveted in a chevron pattern. This pattern kept the wheels from sinking into the soft lunar soil. The lunar soil proved harder than expected and the wheel treads left tracks about half an inch deep.

25A4FD9900000578-2952303-The_spherical_design_allows_for_its_interior_to_be_protected_whi-a-30_1423834741441.jpg
wheel (1).png



ROBOTIC MOBILITY PLATFORM

Today, mobile robot platforms are being developed across almost every industry in order to solve for a number of complex issues whether it is manufacturing, warehousing, research, military, law enforcement, agriculture, mining, etc.




INSPIRATIONAL DESIGNS

TIMELESS AND SOLID PRODUCTS DESIGNED TO MOVE WITHOUT BORDERS




"The target is to create a vehicle that takes us back to the basics of a physically engaging but with an automotive quality in terms of materials and technologies."



DESIGN DEVELOPMENT.jpg


"FIRST 3D MODEL STUDIES"

SUBDIVISION IN SEGMENTS AND NEW GEOMETRY

REVOLVE_wheel_3D design development_Andrea Mocellin
REVOLVE_wheel_3D design development_Andrea Mocellin



STUDIES OF FORM AND FUNCTIONALITY

SERIES OF 3D MODELS TO ACHIEVE THE BEST COMPACTNESS AND ICONIC SHAPE OF FOLDED WHEEL


REVOLVE_wheel_3D design development_Andrea Mocellin

REVOLVE_wheel_3D design development_Andrea Mocellin


PROPORTION AND ERGONOMICS

ACHIEVING THE BEST PORTABILITY AND USE ON TROLLEY AND CART WITH  TWO MODULAR SIDE WHEELS


PHYSICAL PROTOTYPES.jpg


"FIRST ROUGH MODELS TO MAKE IT REAL"



REVOLVE_wheel_design development_Andrea Mocellin
REVOLVE_wheel_design development_Andrea Mocellin
REVOLVE_wheel_design development_Andrea Mocellin
REVOLVE_wheel_design development_Andrea Mocellin

FIRST PHYSICAL MODEL STUDIES

First full scale model to study proportion and mechanism.

UNFOLDED PAPER MODEL

Rough paper model developed for improving the unfolding mechanism.

WOOD & METAL PROTOTYPE

Handmade working prototype with folding and unfolding mechanism.

TYRE SECTIONS   DEVELOPMENT

Studies to improve the tyre design and gaps between segments.

REVOLVE_wheel_design development_Andrea Mocellin
REVOLVE_wheel_design development_Andrea Mocellin
REVOLVE_wheel_design development_Andrea Mocellin

FRAME STUDIES

Final development of the main folding and unfolding mechansim. Smooth and solid in opening and closing the wheel.

HANDMADE WHEEL

First fully working handmade prototype . Construct after several hours of work on testing every single detail.

WORKING PROTOTYPE

First fully working handmade prototype . Developed to be used in both bicycle and wheelchair designs.



FEASIBILITY MODELS.jpg

ENGINEERING 3D STUDIES



REVOLVE_wheel_3D design development_Andrea Mocellin
REVOLVE_wheel_3D design development_Andrea Mocellin
REVOLVE_3D wheel_design development_Andrea Mocellin
REVOLVE_3D wheel_design development_Andrea Mocellin

STYLING DEFINITION

3D model used to fix the target of design definition.

ENGEENERING STUDIES

First 3D model of the selected mechanism.

UNFOLDED SIZE DEVELOPMENT

3D research to achieve the best compatcness and solidity.

COMPACT DESIGN FORM

Achieving the best compact configuration and usability.



PHYSICAL MODELS.jpg


STYLE AND DETAILS DEFINITION

REVOLVE_wheel_prototype design development_Andrea Mocellin

HANDMADE PROTOTYPE

First working prototype to study the solidity and usability of Revolve.

 FEASIBILITY PROTOTYPE

Rapid prototype model used to verify the feasibility and reduce the number of components.

FUNCTIONALITIES PROTOTYPE

Fully working prototype for testing locking and unlocking mechanism and minimization of space when folded.

FINAL WORKING PROTOTYPE

Final prototype with all smooth finish to the component parts and fully woking in most of bicycle and wheelchair designs.





FULLY WORKING PROTOTYPE TESTED ON BOTH BICYCLES AND WHEELCHAIRS

A perfect representation of what Revolve will looks like in our streets.


REVOLVE_wheel_Andrea Mocellin

DETAILS DEFINITION.jpg

DETAILS AND FUNCTIONALITIES


REVOLVE_wheel_details design_Andrea Mocellin



|REVOLVE|

FUNCTIONAL DETAILS

1 - Magnetic Key removal from the central hub..

2 - Locking & Unlocking action with the magnetic key.

3 - Rotational and locking components.

4 - Airless tire designed to fit Revolve and guarantee a lightweight and practical wheel.

5 - Revolve in action.

6 - Wheel integration on a standard wheelchair.

7 - Full working prototype.

8 - Design into the smallest details.




AN OPEN STORY.jpg


"AN OPEN STORY FOR THE PRESENT AND THE FUTURE OF THE FOLDABLE VEHICLES"

TO BUILD A BETTER MOBILITY WITH THE DEMANDS OF TODAY AND TOMORROW
