"IT ALL STARTED IN 2014"


| 3 YEARS OF DEVELOPMENT |

| 100+ 3D MODELS |

| 10+ PHYSICAL PROTOTYPES |





REVOLVE_wheel_design development_Andrea Mocellin

"REINVENT A TIMELESS PRODUCT WITH THE NEEDS OF TODAY

Andrea Mocellin created the original patented design for the folding wheel in 2015.

The patented mechanism is been reach after years of several hundred 3D models and dozens of physical prototypes in order to get the most efficient and accurate folding mechanism. The mission was to build the most compact wheel ever made. Timeless foldable products, robotics, universal joints and Omni wheel for their extremely modular and timeless functional design inspire its creation.

REVOLVE_wheel_design development_Andrea Mocellin
REVOLVE_wheel_design development_Andrea Mocellin
REVOLVE_wheel_design development_Andrea Mocellin

BRAINSTORMING AND FORM RESEARCH

Analyzing form and function to achieve the best compromise between mechanism and aesthetics.

HOBERMANN  PRINCIPLE STUDIES

A Hoberman sphere is an isokinetic structure capable of folding down to a fraction of its normal size by the scissor-like action of its joints.

RAPID PROTOTYPE TESTING

Developing the most effective mechanism through the use of several rapid prototype models. Verifying solidity and feasibility of Revolve.




PATENT PENDING



"A FOLDABLE WHEEL AND VEHICLES EQUIPPED WITH SUCH A WHEEL"

Foldable wheel including a double hub, a rim with rubberised sectors, and spokes pivotly connecting each hub  with the sectors of the rim. The sectors of the rim can be figured, starting from an extended condition  of forming the wheel in which the hubs  are mutually approached, in a collapsed condition  in which the hubs  are mutually spaced apart along the wheel axis. The spokes are pivoted to the hubs substantially on the wheel axis and in the collapsed condition the sectors of the rim extend longitudinally between the two hubs.


REVOLVE_wheel_patent pending_Andrea Mocellin



"SUITABLE FOR ALL TYPES OF TROLLEY OR CART WITH THE HELP OF SIDE WHEELS"



REVOLVE_wheel_patent pending_Andrea Mocellin



"VEHICLES EQUIPPED WITH SUCH A WHEEL"

REVOLVE_wheel_patent pending_Andrea Mocellin





"THE CHALLENGE TO CHANGE A TIMELESS PRODUCT"

 THE UNIVERSAL WHEEL, A TIMELESS PRODUCT NEVER CHANGED IN SHAPE AND FUNCTION







"THE NEED OF EXPLORATION"

THE WHEEL HAS ALWAYS BEEN THE BEST COMPANION IN EXPLORING NEW SPACES





"THE EVOLUTION OF THE WHEEL FOR TODAY'S DEMANDS"



FOLDABLE BICYCLE



A folding bicycle is a bicycle designed to fold into a compact form, facilitating transport and storage. When folded, the bikes can be more easily carried into buildings, on public transportation, and more easily stored in compact living quarters or aboard a car, boat or plane.

WHEEL DESIGN



The Wheel makes your bike an electric bicycle that synchronizes with your movements and amplifies your pedal power 10X. You go farther in less time, with less effort, and can get to places where you'd usually need a car.

GROUND DRONE



An unmanned ground vehicle (UGV) is a vehicle that operates while in contact with the ground and without an onboard human presence. UGVs can be used for many applications where it may be inconvenient, dangerous, or impossible to have a human operator present.

MORPH WHEEL



Initially designed for bicycles, the Morph folding wheel by Vitamins Design measures 60 centimetres across and has a volume of 22 litres. When folded down, the 3.4 kilogram wheel measures 80 centimetres by 32 centimetres and has a volume of only 12 litres.




WHEEL TIPOLOGY.jpg


OMNI WHEEL

Omnidirectional wheels are poly wheels, similar to Mecanum wheels, are wheels with small discs around the circumference which are perpendicular to the turning direction. The effect is that the wheel can be driven with full force, but will also slide laterally with great ease.



GUARDBOT

Guardbot can operate in many demanding situations, as it can travel on paved road, off-road, sand, snow, sloped surfaces, and in water, where it can navigate upstream. Guardbot is designed for mission operations in broadcasting, surveillance, security, and detection.

AIRLESS TIRE

Non-pneumatic tires (NPT), or Airless tires, are tires hat are not supported by air pressure. They are used on some small vehicles such as riding lawn mowers and motorized golf carts. Tires composed of closed-cell polyurethane foam are also made for bicycles and wheelchairs.

LUNAR WHEEL

The tire is made of a woven mesh of zinc-coated piano wire to which titanium treads were riveted in a chevron pattern. This pattern kept the wheels from sinking into the soft lunar soil. The lunar soil proved harder than expected and the wheel treads left tracks about half an inch deep.

25A4FD9900000578-2952303-The_spherical_design_allows_for_its_interior_to_be_protected_whi-a-30_1423834741441.jpg
wheel (1).png



ROBOTIC MOBILITY PLATFORM

Today, mobile robot platforms are being developed across almost every industry in order to solve for a number of complex issues whether it is manufacturing, warehousing, research, military, law enforcement, agriculture, mining, etc.




INSPIRATIONAL DESIGNS

TIMELESS AND SOLID PRODUCTS DESIGNED TO MOVE WITHOUT BORDERS





DESIGN DEVELOPMENT.jpg


"FIRST 3D MODEL STUDIES"

WHEEL DIVIDED IN SEGMENTS -  NEW GEOMETRY

REVOLVE_wheel_3D design development_Andrea Mocellin
REVOLVE_wheel_3D design development_Andrea Mocellin



STUDIES ON FORM AND FUNCTIONALITY

SERIES OF 3D MODELS TO ACHIEVE THE BEST COMPACTNESS AND ICONIC SHAPE OF FOLDED WHEEL


REVOLVE_wheel_3D design development_Andrea Mocellin

REVOLVE_wheel_3D design development_Andrea Mocellin


PROPORTION AND ERGONOMICS

MODULAR SIDE WHEELS USED TO ACHIEVE THE BEST PORTABILITY AND USABILITY ON BOTH TROLLEY AND CART


PHYSICAL PROTOTYPES.jpg


"FIRST ROUGH MODELS TO MAKE IT WORK"



REVOLVE_wheel_design development_Andrea Mocellin
REVOLVE_wheel_design development_Andrea Mocellin
REVOLVE_wheel_design development_Andrea Mocellin
REVOLVE_wheel_design development_Andrea Mocellin

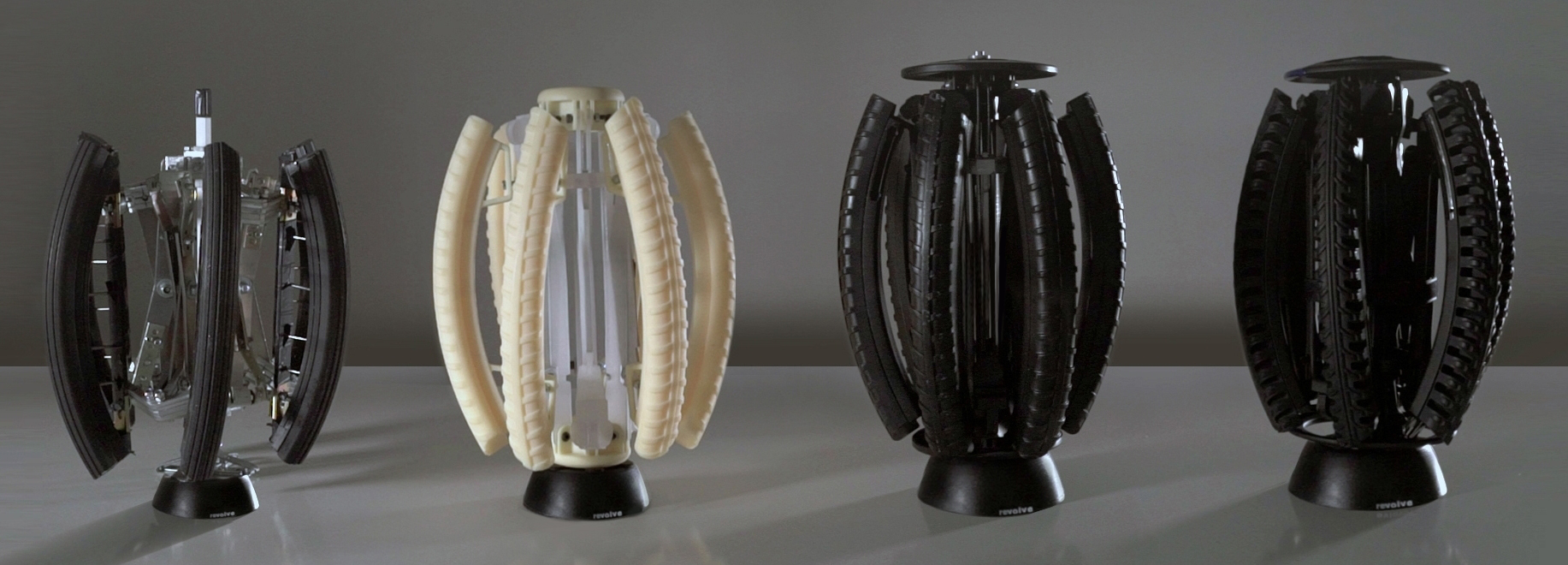

FIRST PHYSICAL MODEL STUDIES

First full scale model to study proportion and mechanism.

UNFOLDED PAPER PROTOTYPE

Rough paper model developed for improving the unfolding mechanism.

WOOD AND METAL PROTOTYPE

Handmade working prototype with folding and unfolding mechanism.

TIRE SECTIONS   DEVELOPMENT

Studies to improve the tire design and gaps between segments.

REVOLVE_wheel_design development_Andrea Mocellin
REVOLVE_wheel_design development_Andrea Mocellin
REVOLVE_wheel_design development_Andrea Mocellin

FRAME STUDIES

Final development of the main folding and unfolding mechanism. Smooth and solid in opening and closing the wheel.

HANDMADE WHEEL

First fully working handmade prototype . Constructed after several hours of work on testing every single detail.

WORKING PROTOTYPE

First fully working handmade prototype . Developed to be used in both bicycle and wheelchair designs.



FEASIBILITY MODELS.jpg

ENGINEERING 3D STUDIES



REVOLVE_wheel_3D design development_Andrea Mocellin
REVOLVE_wheel_3D design development_Andrea Mocellin
REVOLVE_3D wheel_design development_Andrea Mocellin
REVOLVE_3D wheel_design development_Andrea Mocellin

STYLING DEFINITION

3D model used to define style and ergonomics.

ENGEENERING STUDIES

First 3D model to test the foldable mechanism.

UNFOLDED  DESIGN

3D research to develop the right geometry.

COMPACT DESIGN FORM

Achieving the best compact configuration and usability.



PHYSICAL MODELS.jpg


STYLE AND DETAILS DEFINITION


HANDMADE PROTOTYPE

First working prototype to study solidity and usability of Revolve.

 FEASIBILITY PROTOTYPE

Rapid prototype model used to verify feasibility and reduce the number of components.

  FUNCTIONAL PROTOTYPE

Fully working prototype for testing locking and unlocking mechanism to minimize space when folded.

  FINAL PROTOTYPE

Final prototype with all smooth finish, fully working in most of bicycle and wheelchair designs.





FULLY WORKING PROTOTYPE TESTED ON BOTH BICYCLES AND WHEELCHAIRS

A perfect representation of what Revolve will look like in our streets.


REVOLVE_wheel_Andrea Mocellin

DETAILS DEFINITION.jpg

DETAILS AND FUNCTIONALITIES





|REVOLVE|

FUNCTIONAL DETAILS

1 - Magnetic Key

2 - Locking & Unlocking action with magnetic key

3 - Rotational and locking components

4 - Airless tire redesign to reduce weight

5 - Revolve in action

6 - Universal hub

7 - Fully working prototype

8 - Design into the smallest details.




AN OPEN STORY.jpg


"AN OPEN STORY FOR THE PRESENT AND THE FUTURE OF THE FOLDABLE VEHICLES"

TO BUILD A BETTER MOBILITY WITH THE DEMANDS OF TODAY AND TOMORROW
